7.1.1 Examples of Different Loops

To give you a feeling for the way the different loops solve their problems in different ways, consider the following three procedures. In each case, the procedure executes the same body of code inside a loop:

set_rank (ranking_level);

where set_rank performs a ranking for the specified level.

• The simple loop. My procedure accepts a maximum ranking as an argument and then sets the rank until the level exceeds the maximum. Notice the IF statement to guard against executing the loop when the maximum rank is negative. Notice also the EXIT WHEN statement used to terminate the loop:

  PROCEDURE set_all_ranks (max_rank_in IN INTEGER) IS    ranking_level NUMBER(3) := 1; BEGIN    IF max_rank_in >= 1    THEN       LOOP          set_rank (ranking_level);          ranking_level := ranking_level + 1;          EXIT WHEN ranking_level > max_rank_in;       END LOOP;    END IF; END;

• The FOR loop. In this case, I rank for the fixed range of values, from one to the maximum number:

  PROCEDURE set_all_ranks (max_rank_in IN INTEGER) IS BEGIN    FOR ranking_level IN 1 .. max_rank_in    LOOP       set_rank (ranking_level);    END LOOP; END;

• The WHILE loop. My procedure accepts a maximum ranking as an argument and then sets the rank until the level exceeds the maximum. Notice that the condition which terminates the loop comes on the same line as the WHILE keyword:

  PROCEDURE set_all_ranks (max_rank_in IN INTEGER) IS    ranking_level NUMBER(3) := 1; BEGIN    WHILE ranking_level <= max_rank_in    LOOP       set_rank (ranking_level);       ranking_level := ranking_level + 1;    END LOOP; END;

In the above example, the FOR loop clearly requires the smallest amount of code. Yet I could only use it in this case because I knew that I would run the body of the loop a specific number of times (max_rank_in). In many other situations, the number of times a loop must execute varies and so the FOR loop cannot be used.

7.1.2 Structure of PL/SQL Loops

While there are differences among the three loop constructs, every loop has two parts: the loop boundary and the loop body . The loop boundary is composed of the reserved words that initiate the loop, the condition that causes the loop to terminate, and the END LOOP statement that ends the loop. The body of the loop is the sequence of executable statements inside the loop boundary which execute on each iteration of the loop.

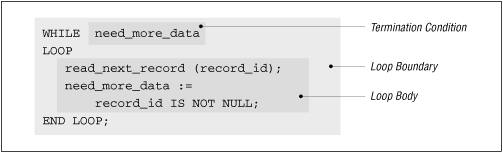

Figure 7.1 shows the boundary and body of a WHILE loop.

Figure 7.1: The boundary and body of the WHILE loop

In general, think of a loop much as you would a procedure or a function. The body of the loop is a black box, and the condition that causes loop termination is the interface to that black box. Code outside of the loop should not have to know about the inner workings of the loop. Keep this in mind as you go through the different kinds of loops and examples in the rest of the chapter.

In addition to the examples you will find in this chapter, I have included several lengthy code samples utilizing PL/SQL loops in the Oracle Forms environment in the following files on the disk:

highrec.doc and highrec.fp

Demonstrate highlighting items in an Oracle Forms record.

ofquery.doc, postqry.fp , and preqry.fp

Demonstrate automatic post- and pre-query processing in Oracle Forms.
