7.2. Remote Database Applications

As we alluded to earlier in the book, client-server applications are often broken down into different levels, or tiers, to use the current vernacular. A typical application breakdown involves three tiers: user-interface functions, application objects, and data access. Up until now, we've mostly been discussing ways of distributing the application logic across the network, using distributed objects or some form of message passing to allow elements of the core application to lie on remote hosts. In this chapter, we'll discuss the options available for implementing the data access level of a distributed application.

The data access tier of a multitiered distributed application can be divided into two subtiers, as shown in Figure 7-1. First, an interface must be established between JDBC and the actual DBMS holding the data. A set of data objects representing the concepts in the database can then be defined; these objects serve as an interface from the application-level objects to the data in the database. These data objects interact with the DBMS through the JDBC interface to perform operations on the low-level data that they represent. The application-layer objects interact with the data objects to query and update the data.

figure

Figure 7-1. Breakdown of the data access tier

7.2.1. JDBC Driver Configurations

Before you can use the JDBC API to engage in transactions with your database, a JDBC driver that is connected to your database has to be available. The JDBC driver accepts the JDBC transaction protocol and converts it to the appropriate native commands for the type of RDBMS you are using.

Figure 7-2 shows the various ways that a JDBC driver can be configured to interact with an RDBMS. The first configuration involves a JDBC driver running on the database host machine and interacting directly with the relational database. The JDBC client, consisting of JDBC API code plus the JDBC driver, resides either on a remote machine or on the database host itself. The JDBC driver accepts connections from clients using the JDBC API to issue statements to the database. The driver converts the JDBC commands directly into the RDBMS native access protocol (typically SQL with the addition of some proprietary commands) and issues the native statements to the RDBMS. The results from the database are received by the JDBC driver, converted to the appropriate transmission format, and sent to the JDBC client, where they are returned in the form of a ResultSet object to the caller.

figure

Figure 7-2. JDBC driver configurations

The second configuration is similar to the first, except that an ODBC driver sits between the JDBC driver and the relational database. ODBC is a standard relational database driver API that has become popular because it insulates applications from the specifics of particular relational databases. ODBC drivers are offered for nearly all major RDBMS vendors on the market today. In this configuration, the JDBC driver acts as before with respect to the client, accepting and responding to JDBC transaction requests. Now, however, these transactions are converted to ODBC statements and issued to the ODBC driver, which in turn converts the statements to the RDBMS native format. This configuration uses a JDBC-ODBC bridge, which is essentially a JDBC driver that speaks ODBC, rather than a specific database vendor's access protocol. The advantage to using ODBC to communicate with the database is the ability to migrate your data and its structure to another database, or to apply the same application to another database with an ODBC driver. ODBC is also an important option to consider when a native JDBC driver is not available for the database in question. However, adding an additional conversion step in the query process can be inefficient, and sometimes unacceptable in high-throughput applications.

The third configuration is one where a JDBC driver on the client converts JDBC statements directly into a networked protocol. This protocol is then transmitted to a remote database server fitted with a module capable of receiving this protocol and responding to it. The database client now contains only the JDBC API and the JDBC driver for this networked protocol. The advantage of this configuration is that the client element of the JDBC driver can be relatively simple, since it only needs to convert JDBC commands into the networked protocol. All of the logic for converting data types to native database types and back again, issuing statements to the native database through its access protocol, and mapping the results into either Java objects or the appropriate Exception, resides with the more complex agent on the database server. This option of reducing the amount of code residing on the data client can be an important one, especially in an applet context in which the client agent is running on a user's desktop.

The first two JDBC driver configurations (JDBC directly to DBMS and JDBC to ODBC to DBMS) also can be used to access databases on remote hosts. Many native DBMS drivers as well as ODBC drivers include support for networked access of database servers. These drivers serialize native database protocols or the ODBC protocol and engage in transactions with a remote DBMS over the network. The DBMS host server needs to be augmented with drivers that can accept these networked connections. In this case, the DBMS or ODBC drivers need to reside on the client host, in addition to the network transaction drivers.

7.2.2. Defining the Data Objects

With these database driver configurations, we can examine our options for implementing the data objects of our multitiered distributed application.

One of the design principles we've been advocating is encapsulation--hiding the low-level implementation details of a system or subsystem and providing a clean, well-defined interface to it. This principle is also applicable in the design of the data access layer of distributed applications. The "low-level details" we want to hide through encapsulation are things like the type of DBMS being used (e.g., relational or object-oriented, vendor name, DBMS version), the specific location (e.g., host, database name, etc.) of the data on the network, and even the structural layout of the data in the database (e.g., field, table, and view names in a relational database).

Data layer encapsulation is achieved in the Java environment by defining classes that represent the conceptual data stored in your database. Think about storing and retrieving personal information (e.g., name, address, phone number). Ignoring the data layout issues for the moment, we would normally want to encapsulate this data as a Java class that represents a person:

class DBPerson {
    Connection c;    // The connection to the database
    String name;     // Name of the desired person
    // Any other data we want to cache within the object
        ...

    public DBPerson(String name, Connection c, boolean preload) {
        dbConn = c;
        if (preload) {
            initFromDB();
        }
    }

    public String getAddress() {
        // Perform database transactions to retrieve
        // address information
            ...
    }

The data objects that we use to represent concepts stored in our database tables can be either local or remote with respect to the application logic of our system. If they are local, the data objects could be Java objects that access the database using JDBC directly. If our system will involve remote data objects, perhaps due to issues regarding direct access to the database, then the data objects would need to be accessible from the local client as a data server. This access could be provided through distributed objects implemented in RMI or CORBA, or it could be through simpler message-passing techniques such as those described in Chapter 6, "Message-Passing Systems". In the following sections we'll examine an example database application, and the different ways the data objects could be implemented in both a local and remote context.

7.2.3. A Scheduling Example

To demonstrate these ideas, let's turn to a distributed application involving databases. Our example will revolve around a generic scheduling system, where the data to be stored in a DBMS will include information on resources, tasks to be accomplished with these resources, temporal constraints between tasks, and assignments of resources to tasks. Let's assume for now that the data is stored in a relational database of some sort, and is arranged into tables as shown in Figure 7-3. A RESOURCE record identifies an available resource, along with its name, coded type, and a size value that is interpreted based on its type (e.g., the size of a storage bin may be some volume measurement, while the size of a drill press may be the largest job it can process). A TASK record represents a task that needs to be accomplished using the available resources. It includes a coded type field and a size that is also interpreted based on its type. A TIME_CONSTRAINT record represents a constraint on the completion times of two tasks. A coded type field indicates what kind of temporal constraint is being placed on the two tasks (e.g., "before," "after," "during"). A RES_ASSIGNMENT record represents the assignment of a task to a resource at a given time. The complete set of RES_ASSIGNMENT records represents a schedule for this set of resources and tasks. The RESOURCE and TASK tables have primary keys (rid and tid, respectively), which are unique identifiers for the records in these tables. The records in the TIME_CONSTRAINT table are keyed off of the TASK records that they reference in their task1 and task2 fields. The RES_ASSIGNMENT records are also indirectly keyed off of the resource and task IDs that they associate in time.

figure

Figure 7-3. Data layout for a scheduling database

In designing the data objects that will be used to access this data, we have to consider several factors, including:

For the scheduling example we are discussing, we can assume that the data objects will need to create new time constraint and resource assignment entries in the database. We should also provide a means to create new resources and tasks, unless we know that this data will always be created by another agent.

7.2.4. JDBC-Enabled Data Objects

For the first version of our scheduling data objects, we'll implement the Java classes using JDBC directly to access the scheduling database. We'll be depending on the JDBC driver configuration to provide networked access to remote databases. Later we'll look at how to access remote databases in other ways.

The Java classes for our JDBC example will be designed along the lines of Figure 7-4. A DatabaseItem class serves as the base class for all of our data objects. It maintains a global database Connection for all of the data objects in the application, and provides two abstract methods for reading and writing the objects in the database pointed at by the global Connection. The data objects that we'll derive from this base class will have a one-to-one mapping with the tables in our database.

figure

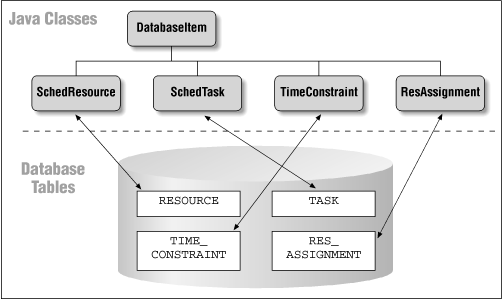

Figure 7-4. Data objects for the scheduling example

Example 7-2 shows the Java code for the DatabaseItem interface. This base class provides slots for a global java.sql.Connection object and for a validity flag. The global Connection is used for all transactions made by the data objects with the database to retrieve or update their data. The DatabaseItem interface also includes two abstract methods: updateToDbase() and updateFrom-Dbase(). These have to be implemented in subclasses to perform the necessary database transactions to store the object's data to the database, and to retrieve the object's current data from the database, respectively. Anytime during the lifetime of a DatabaseItem, its updateFromDbase() method can be called to refresh the local data from the database, or its updateToDbase() method can be called to update the database with the local data.

Example 7-2. Base Class for Database Items

package dcj.examples.dbase;

import java.sql.*;

abstract class DatabaseItem {
  static Connection dbConn;
  boolean valid;

  public boolean isValid() { return valid; }

  public abstract boolean updateToDbase();
  public abstract boolean updateFromDbase();
}

The classes representing the data objects for our scheduling examples are shown in Example 7-3 through Example 7-6. The SchedResource and SchedTask classes in Example 7-3 and Example 7-4 represent resources and tasks in the database, while the TimeConstraint and ResAssignment classes in Example 7-5 and Example 7-6 represent constraints between tasks and assignments of resources to tasks.

Example 7-3. Schedule Resource Object

package dcj.examples.dbase;

import java.sql.*;
import java.util.Vector;

class SchedResource extends DatabaseItem {
  int rid;
  String name;
  int type;
  float size;

  public SchedResource(int id) {
    rid = id;
    valid = updateFromDbase();
  }

  public SchedResource(String n, int t, float s) {

    try {
      Statement st = DatabaseItem.dbConn.createStatement();
      int rcnt = st.executeUpdate("INSERT INTO resource "
                                  + "(rid, name, type, size) VALUES "
                                  + "(ridseq.nextval, " + n + ", "
                                  + t + ", " + s + ")");
      if (rcnt == 1)
        valid = true;
      else
        valid = false;
    }
    catch (SQLException e) {
      valid = false;
    }
  }

  public int    getId()           { return rid; }

  public String getName()         { return name; }
  public void   setName(String n) { name = n; updateToDbase(); }

  public int    getType()         { return type; }
  public void   setType(int t)    { type = t; updateToDbase(); }

  public float  getSize()         { return size; }
  public void   setSize(float s)  { size = s; updateToDbase(); }

  public boolean updateFromDbase() {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r =
        s.executeQuery("SELECT name, type, size FROM resource WHERE rid = "
                       + rid);
      if (r.next()) {
        name = r.getString("name");
        type = r.getInt("type");
        size = r.getFloat("size");
      }
      else {
        success = false;
      }

      s.close();
    }
    catch (SQLException e) {
      success = false;
    }

    return success;
  }

  public boolean updateToDbase() {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      int numr = s.executeUpdate("UPDATE resource SET name = " + name
                                 + ", type = " + type + ", size = " + size
                                 + " WHERE rid = " + rid);
      if (numr < 1) {
        success = false;
      }
    }
    catch (SQLException s) {
      success = false;
    }

    return success;
  }

  static public Vector getAllResources() {
    Vector resList = new Vector();
    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT distinct(rid) FROM resource");
      while (r.next()) {
        int id = r.getInt("rid");
        SchedResource res = new SchedResource(id);
        if (res.isValid()) {
          resList.addElement(res);
        }
      }
    }
    catch (Exception e) {};

    return resList;
  }
}

An individual SchedResource or SchedTask object can be constructed in two ways: using an integer identifier for the desired database record, or using data items representing a new database record that is to be created. In the first case, the SchedResource and SchedTask constructors set their identifiers to the one given as an argument, then try to update themselves from the database by calling their updateFromDbase() methods. Their updateFromDbase() methods create a JDBC statement from the database connection and execute a SELECT query to the database to retrieve the data for the record. If the indicated record isn't found, then the valid flag on the object is set to false. In the second case, the constructor attempts to create a new record in the database with the given data by creating a JDBC statement and executing an INSERT query to the database. If the data insertion fails, then the valid flag on the object is set to false. The SchedResource and SchedTask classes also provide static methods for retrieving all of the resources or tasks from the schedule database. SchedResource.getAllResources() returns a vector of SchedResources representing all of the resource records found in the database, and the SchedTask.getAllTasks() method does the same for SchedTask objects.

Example 7-4. Schedule Task Object

package dcj.examples.dbase;

import java.sql.*;
import java.util.Vector;

class SchedTask extends DatabaseItem {
  int tid;
  int type;
  float size;

  SchedTask(int id) {
    tid = id;
    valid = updateFromDbase();
  }

  SchedTask(int t, float sz) {
    type = t;
    size = sz;
    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      int cnt = s.executeUpdate("INSERT INTO task (tid, type, size) "
                                + "VALUES (tidseq.nextval, " + type + ", "
                                + size + ")");
      if (cnt < 1) {
        valid = false;
      }
      else {
        valid = true;
      }
    }
    catch (SQLException e) {
      valid = false;
    }
  }

  public int    getId()           { return tid; }

  public int    getType()         { return type; }
  public void   setType(int t)    { type = t; }

  public float  getSize()         { return size; }
  public void   setSize(float s)  { size = s; }

  public boolean updateFromDbase() {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r =
        s.executeQuery("SELECT type, size FROM task WHERE tid = "
                       + tid);
      if (r.next()) {
        type = r.getInt("type");
        size = r.getFloat("size");
      }
      else {
        success = false;
      }

      s.close();
    }
    catch (SQLException e) {
      success = false;
    }

    return success;
  }

  public boolean updateToDbase() {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      int numr = s.executeUpdate("UPDATE task SET type = "
                                 + type + ", size = " + size
                                 + " WHERE tid = " + tid);
      if (numr < 1) {
        success = false;
      }
    }
    catch (SQLException s) {
      success = false;
    }

    return success;
  }

  static public Vector getAllTasks() {
    Vector taskList = new Vector();

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT distinct(tid) FROM task");
      while (r.next()) {
        int id = r.getInt("tid");
        SchedTask task = new SchedTask(id);
        if (task.isValid()) {
          taskList.addElement(task);
        }
      }
    }
    catch (Exception e) {}

    return taskList;
  }
}

TimeConstraint s and ResAssignments are created using their constructors with the relevant resource or task identifiers as arguments. The TimeConstraint constructor takes arguments that indicate its type, the IDs of two tasks that are to be constrained, and an insert flag that indicates whether the new constraint should be stored as a new record in the database. This flag is useful in situations where a local-only object is desired (e.g., a possible schedule for the existing tasks and resources is being evaluated locally before being committed to the database). The ResAssignment constructor has arguments for the ID of the resource being assigned, the ID of the task it is being assigned to, the time that the assignment is to occur, and an insert flag similar to the one for the TimeConstraint constructor. The TimeConstraint class also provides a static method, constraintsFor() , which takes a task identifier and returns all of the constraints from the database involving that task, as a list of TimeConstraint objects. ResAssignment has a similar method, assignmentsFor() , which takes a resource identifier and returns all assignments to tasks for that resource, in the form of a list of ResAssignment objects.

Example 7-5. Time Constraint Object

package dcj.examples.dbase;

import java.sql.*;
import java.util.Vector;

class TimeConstraint extends DatabaseItem {
  int ctype;
  int task1;
  int task2;

  // This constructor is used to create a representation
  // of a constraint in the database.
  public TimeConstraint(int type, int tid1, int tid2,
                        boolean insert) {
    ctype = type;
    task1 = tid1;
    task2 = tid2;

    if (insert) {
      // Create a new record in the database.
      try {
        Statement s = DatabaseItem.dbConn.createStatement();
        int numr = s.executeUpdate("INSERT INTO time_constraint "
                               + "(type, task1, task2) VALUES ("
                               + type + ", " + task1 + ", " + task2 + ")");
        if (numr != 1)
          valid = false;
        else
          valid = true;
      }
      catch (SQLException e) {
        valid = false;
      }
    }
  }

  public int getTask1Id() { return task1; }
  public int getTask2Id() { return task2; }
  public int getType() { return ctype; }

  static public Vector constraintsFor(int tid) {
    Vector constraints = new Vector();

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT task1, task2, type FROM "
                                   + "time_constraint where task1 = "
                                   + tid + " or task2 = " + tid);
      while (r.next()) {
        int tid1 = r.getInt("task1");
        int tid2 = r.getInt("task2");
        int type = r.getInt("type");
        TimeConstraint c = new TimeConstraint(type, tid1, tid2,
                                              false);
        constraints.addElement(c);
      }
    }
    catch (Exception e) {}

    return constraints;
  }

  // This class represents non-indexed table data, so we can't
  // load or update one uniquely from the database
  public boolean updateFromDbase() { return false; }
  public boolean updateToDbase() { return false; }
}

Example 7-6. Resource Assignment Object

package dcj.examples.dbase;

import java.sql.*;
import java.util.Vector;
import java.util.Date;

class ResAssignment extends DatabaseItem {
  int rid;
  int tid;
  Date timestamp;

  ResAssignment(int res, int task, Date time, boolean insert) {
    rid = res;
    tid = task;
    timestamp = time;

    if (insert) {
      // Create a new record in the database.
      try {
        Statement s = DatabaseItem.dbConn.createStatement();
        int numr = s.executeUpdate("INSERT INTO res_assignment "
                     + " (resource, task, time) VALUES ("
                     + rid + ", " + tid + ", " + time + ")");
        if (numr != 1)
          valid = false;
        else
          valid = true;
      }
      catch (SQLException e) {
        valid = false;
      }
    }
  }

  public int  getResourceId() { return rid; }
  public int  getTaskId() { return tid; }
  public Date getTimeStamp() { return timestamp; }

  static public Vector assignmentsFor(int rid) {
    Vector ras = new Vector();

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT task, time FROM "
                                   + "res_assignment where resource = "
                                   + rid);
      while (r.next()) {
        int tid = r.getInt("task");
        Date time = r.getDate("time");
        ResAssignment ra = new ResAssignment(rid, tid, time, false);
        ras.addElement(ra);
      }
    }
    catch (Exception e) {}

    return ras;
  }

  // This class represents non-indexed table data, so we can't
  // load or update one uniquely from the database
  public boolean updateFromDbase() { return false; }
  public boolean updateToDbase() { return false; }
}

With these data objects defined, we can now use them in several distributed application contexts to access local and remote schedule databases. If the schedule database is local, then we simply need to have the JDBC drivers for the DBMS on our class path when we run an application built against these objects. The application will create a java.sql.Connection object with the name of the local database and use it to initialize all schedule-related objects. If we want to put the database on a remote server, then we have two ways to connect these data objects to the database. If the native DBMS interface provides a network interface and if the JDBC drivers we are using support this vendor-specific network interface, then we can install the DBMS network interface and modify the URL used to create the JDBC connection to the database to reflect the remote location. If this is not an option, either because the DBMS has no network interface, or because we cannot use the DBMS network interface on the client machine for some reason, then we have the option of using JDBC drivers with their own network protocol (as we discussed in an earlier section). The database host machine would need to have the corresponding server drivers installed, including the drivers that speak the native DBMS interface protocol.

7.2.5. Data Caching Issues

The JDBC data objects previously shown cache all of their data locally, i.e., within the data object representation itself. When each data object is created, all of the data associated with that object is read from the database and stored in local data variables; these local data variables are returned in response to method calls on the data objects. This caching scheme is appropriate when the data being accessed is fairly stable, or is only updated from one client at any given time. If our scheduling database is being accessed from multiple clients, and each client updates objects in the database at will, we may want to think about a shorter-duration caching scheme.

At the opposite end of the caching spectrum are data objects that have no cached data. Each request for data from the object is serviced by generating an SQL query to the database that gets the current data from the source. If we reimplemented our SchedResource class to eliminate data caching, its data access methods would look something like this getName() method:

public String getName()
{
    String name;
    Statement s = null;
    try {
        s = dbConn.getStatement();
        ResultSet r =
         s.executeQuery("SELECT name FROM resource where rid = "
                        + rid);
        name = r.getString("name");
    }
    catch {Exception e) { name = null; }
    finally {
        if (s != null) {
            s.close();
        }
    }
    return name;
}

Complete elimination of data caching is not generally useful for remote database applications, since the additional overhead involved in having all data read dynamically is usually unacceptable. Intermediate caching schemes involve data updates of varying frequency, and only a subset of the data served from the database is cached--the data that is least likely to be updated during the lifetime of the client agent. The data update frequency can be controlled using timers; for example, if we wanted the "name" field on our resource object to be cached, but have the cache refreshed from the database every hour in case of an update, then our getName() method on our SchedResource class might look something like this:

public String getName()
{
    String currName;
    Calendar now = Calendar.getInstance();
    Calendar lastUpdate = Calendar.getInstance();
    lastUpdate.setTime(nameTimestamp);
    // Add the cache expiration time (in minutes) to the time
    // of last update
    lastUpdate.add(cacheExpirationTime, Calendar.MINUTE);
    // If the name cache has expired, then go to the database
    if (lastUpdate.before(now)) {
        try {
            Statement s = dbConn.getStatement();
            ResultSet r =
             s.executeQuery("SELECT name FROM resource where rid = "
                            + rid);
            name = r.getString("name");
            // Reset the cache timer
            nameTimestamp = new Date();
        }
        catch {Exception e) { currName = name; }
    }
    // Otherwise, use the previous value cached in the class
    // data member
    currName = name;

    return currName;
}

In this example, the resource data object has a nameTimestamp variable that is used to expire the cache for the name data member. When getName() is called, the timestamp on the cache for that variable is checked. If the time since the cache was refreshed has gone beyond the limit we set (represented in minutes by the cacheExpirationTime data member), then a call to the database is made to refresh the cache. If not, then the local data member is used as the name of the resource.

7.2.6. Remote Data Servers

Now it may become necessary to isolate the direct data access portion of our data tier on a remote data server, and provide indirect data access to the application layer. One reason for this may be that the data representations required for a given application have many interdependencies and data constraints. If we want to keep the client-side data access lean and free from this complex data logic (e.g., if we are using these data objects in an applet), then we would prefer to put the data objects on a data server and provide a simplified data access layer to the client. An example of this is the potential complexity of the SchedTask data object. Updating this object in the database could involve some complex logic for verifying the validity of existing time constraints on the task, as well as resources currently assigned to completing the task. We could avoid inflicting this complexity on the client by providing a way for the client to transmit its update request to the data server, have the data server run the request through the data dependencies, update the database, and return the result to the client. Other reasons for separating data logic from the application tier may involve security issues (e.g., the potential for reverse-engineering the bytecodes of a data object to determine the proprietary structure of a database, physical access to the database server, etc.).

If the data objects also reside on a host that is remote from the client host, then we can interface the application tier to the data tier using either the message-passing techniques discussed in Chapter 6, "Message-Passing Systems", or using distributed objects implemented in CORBA, Java RMI, or the equivalent. In the following sections, we'll examine both of these possibilities.

7.2.6.1. Message passing with the data server

To provide access to remote data using message passing, we first need to establish a data server that can respond to messages from clients and access the data referenced in the messages. This is easily accomplished using existing data objects such as those we saw earlier, by simply developing a set of messages that can talk to these data objects on the data server. We could have a GetResourceMsg class, for example, which is a message passed from a client to the data server asking for the data associated with a given resource. If we model this message-passing system after the Message and MessageHandler classes described in Chapter 6, "Message-Passing Systems", then the Do() method on GetResourceMsg might look something like this:

public boolean Do() {
    boolean success = true;
    // Get the resource ID from the message arguments
    Integer rid = (Integer)argList.elementAt(0);
    // Connect to the database.
    Connection c = DriverManager.getConnection(...);
    // Create the referenced data object from the database
    SchedResource res = new SchedResource(rid.intValue(), c);

    GetResourceResp grr = new GetResourceResp();
    // If we were able to find the resource in the database,
    // return a success flag, along with the resource data.
    if (res.isValid()) {
        grr.addArg("success");
        grr.addArg(res.getName();
        grr.addArg(new Integer(res.getType()));
        grr.addArg(new Float(res.getSize()));
    }
    // If the database query failed, return a failure flag
    else {
        grr.addArg("failed");
        success = false;
    }

    handler.sendMsg(grr);
    return success;
}

A GetResourceMsg object would be created by the MessageHandler on the data server when a message of this type was received from a data client. This Do() method would then be invoked. A SchedResource object is created, which pulls the relevant data from the database using JDBC, and the resource data is formatted into a return message to the client. On the client, we could provide message-passing versions of our data objects. These could be modeled closely after the JDBC-enabled data objects, with the implementation altered to use messages for data transactions rather than the JDBC API. For example, the constructor for a message-passing version of our SchedResource object could be implemented as shown in Example 7-7. The constructor calls an updateFromDbase() method, just as the JDBC data object does, but this method generates a GetResourceMsg message, sends it to the data server, then parses the response to extract the data.

Example 7-7. A Message-Passing Remote Data Object

class MPSchedResource {

        . . .

 MPSchedResource(int id, ScheduleMsgHandler h) {
    super(h);
    rid = id;
    valid = updateFromDbase();
  }

  public boolean updateFromDbase() {
    boolean success = true;

    try {
      GetResourceMsg gm = new GetResourceMsg(rid);
      handler.sendMsg(gm);
      Message gr = handler.readMsg();
      name = (String)r.getArg(0);
      Integer tmp = (Integer)r.getArg(1);
      type = tmp.intValue();
      Float ftmp = (Float)r.getArg(2);
      size = ftmp.floatValue();
    }
    catch (Exception e) {
      success = false;
    }

    return success;
  }

        . . .
}

With the data tier split in this way--message-passing objects on the client talking to JDBC-enabled data objects on the data server--the issue of data caching becomes more complicated. Data can now be cached in both the client agent and in the objects on the data server, if we so desire. Some of the same issues are involved in determining the proper level of caching on both levels of the data tier:

Other issues are specific to each level of the data tier. On the data server:

And on the data client:

7.2.6.2. Distributed objects from the data server

Another option for splitting the data tier between the client and the data server is to use distributed objects. In this situation, data object stubs on the client use distributed object protocols to interact with data objects on the server. The server-side data objects then access the database directly, using JDBC or some other RDBMS interface library. In this section we'll develop an RMI interface to our scheduling data objects.

With the JDBC-enabled data objects for our scheduling application in hand, we need to perform the following steps to enable RMI access to them:

Let's define the client stub interfaces to our data objects first. Each data object that we defined in the previous section will need a remote stub; the interfaces to the remote objects are shown in Example 7-8. The RMIDatabaseItem interface mirrors the DatabaseItem class, and exports the updateToDbase() and updateFromDbase() methods. Derived from this we have stub interfaces for each of our data objects: RMISchedResource, RMISchedTask, RMITimeConstraint, and RMIResAssignment. Each of these interfaces exports the getXXX() and setXXX() methods from the schedule data classes.

Example 7-8. Schedule Data Object Stub Interfaces

package dcj.examples.dbase;

import java.util.Date;
import java.util.Vector;
import java.sql.*;
import java.rmi.*;

interface RMISchedDbaseItem extends Remote {
  public boolean updateFromDbase() throws RemoteException;
  public boolean updateToDbase() throws RemoteException;
}

interface RMISchedResource extends RMISchedDbaseItem {
  public boolean isValid() throws RemoteException;

  public int    getId() throws RemoteException;
  public String getName() throws RemoteException;
  public void   setName(String n) throws RemoteException;
  public int    getType() throws RemoteException;
  public void   setType(int t) throws RemoteException;
  public float  getSize() throws RemoteException;
  public void   setSize(float s) throws RemoteException;
}

interface RMISchedTask extends RMISchedDbaseItem {
  public boolean isValid() throws RemoteException;

  public int    getId() throws RemoteException;
  public int    getType() throws RemoteException;
  public void   setType(int t) throws RemoteException;
  public float  getSize() throws RemoteException;
  public void   setSize(float s) throws RemoteException;
}

interface RMITimeConstraint extends RMISchedDbaseItem {
  public boolean isValid() throws RemoteException;

  public int getTask1Id() throws RemoteException;
  public int getTask2Id() throws RemoteException;
  public int getType() throws RemoteException;
}

interface RMIResAssignment extends RMISchedDbaseItem {
  public boolean isValid() throws RemoteException;

  public int  getResourceId() throws RemoteException;
  public int  getTaskId() throws RemoteException;
  public Date getTimeStamp() throws RemoteException;
}

Now we need to provide the client with the ability to create new data objects. The only remote objects that the client can request directly from the remote server are objects that have been explicitly registered with the RMI registry running on the server. So we need to provide an object broker, similar to the object activation facilities provided in CORBA by the server's ORB. The RMISchedDbase interface shown in Example 7-9 serves this function by providing methods for creating new resources, tasks, constraints, and resource assignments in the database, and for retrieving existing data records from the database. The results are provided in terms of the remote stubs in Example 7-8. These methods replace the constructors and static utility methods in Example 7-7.

Example 7-9. A Schedule Data Object Server

package dcj.examples.dbase;

import java.rmi.*;
import java.util.Vector;
import java.util.Date;

public abstract interface RMISchedDbase extends Remote {
  // Methods for creating/retrieving resources
  public RMISchedResource getResource(int rid) throws RemoteException;
  public RMISchedResource newResource(String n, int t, float s)
                          throws RemoteException;
  public Vector getAllResources() throws RemoteException;

  // Methods for creating/retrieving tasks
  public RMISchedTask getTask(int id) throws RemoteException;
  public RMISchedTask newTask(int t, float sz) throws RemoteException;
  public Vector getAllTasks() throws RemoteException;

  // Methods for creating/retrieving constraints
  public RMITimeConstraint newConstraint(int type, int t1, int t2)
                           throws RemoteException;
  public Vector constraintsFor(int tid) throws RemoteException;

  // Methods for creating/retrieving resource assignments
  public RMIResAssignment newResAssignment(int rid, int tid, Date time)
                          throws RemoteException;
  public Vector assignmentsFor(int rid) throws RemoteException;
}

Now we need to turn to the server implementations of these interfaces. The server implementations of our RMI data objects are nearly identical to the first versions we discussed earlier, except that now they derive from the RMI UnicastRemote-Object class, and implement the corresponding RMI stub interface. For example, the RMI-enabled version of the SchedResource class is shown in Example 7-10, and is called SchedResourceImpl. The implementation is nearly identical to that of the SchedResource class shown in Example 7-3, except that each RMI-exported method throws RemoteException, and the class implements its RMI stub counterpart as well as the DatabaseItemImpl base class. Also, the DatabaseItemImpl class, which isn't shown here, extends the UnicastRemoteObject class, so all of its subclasses become UnicastRemote-Objects as well.

Example 7-10. RMI-Enabled Resource Object

package dcj.examples.dbase;

import java.util.Vector;
import java.util.Date;
import java.sql.*;
import java.rmi.*;
import java.rmi.server.*;
import java.rmi.registry.*;

class SchedResourceImpl extends DatabaseItem implements RMISchedResource {
  int rid;
  String name;
  int type;
  float size;

  SchedResourceImpl(int id) throws RemoteException {
    rid = id;
    valid = updateFromDbase();
  }

  SchedResourceImpl(String n, int t, float s)
    throws RemoteException {

    try {
      Statement st = DatabaseItem.dbConn.createStatement();
      int rcnt = st.executeUpdate("INSERT INTO resource "
                   "(rid, name, type, size) VALUES (ridSeq.nextVal, "
                   + n + ", " + t + ", " + s + ")");
      if (rcnt == 1)
        valid = true;
      else
        valid = false;
    }
    catch (Exception e) {
      valid = false;
    }
  }

  public int    getId() throws RemoteException
                  { return rid; }
  public String getName() throws RemoteException
                  { return name; }
  public void   setName(String n) throws RemoteException
                  { name = n; updateToDbase(); }
  public int    getType() throws RemoteException
                  { return type; }
  public void   setType(int t) throws RemoteException
                  { type = t; updateToDbase(); }
  public float  getSize() throws RemoteException
                  { return size; }
  public void   setSize(float s) throws RemoteException
                  { size = s; updateToDbase(); }

  public boolean updateFromDbase() throws RemoteException {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      ResultSet r =
        s.executeQuery("SELECT name, type, size FROM resource WHERE rid = "
                       + rid);
      if (r.next()) {
        name = r.getString("name");
        type = r.getInt("type");
        size = r.getFloat("size");
      }
      else {
        success = false;
      }

      s.close();
    }
    catch (SQLException e) {
      success = false;
    }

    return success;
  }

  public boolean updateToDbase() throws RemoteException {
    boolean success = true;

    try {
      Statement s = DatabaseItem.dbConn.createStatement();
      int numr = s.executeUpdate("UPDATE resource SET name = " + name
                                 + " type = " + type + " size = " + size
                                 + " WHERE rid = " + rid);
      if (numr < 1) {
        success = false;
      }
    }
    catch (SQLException s) {
      success = false;
    }

    return success;
  }
}

The implementation of the RMISchedDbase is the SchedDbaseImpl class shown in Example 7-11. In addition to implementing the utility methods that create and retrieve schedule objects from the database, the SchedDbaseImpl class also has a main() method that registers an instance of the class with the local RMI registry under a name passed in as a command-line argument. This allows clients to obtain an RMI stub to the object by looking up the object by name through their local registries.

Example 7-11. RMI-Based Data Server Object

package dcj.examples.dbase;

import java.util.Vector;
import java.util.Date;
import java.sql.*;
import java.rmi.*;
import java.rmi.server.*;
import java.rmi.registry.*;

class SchedDbaseImpl extends UnicastRemoteObject
                     implements RMISchedDbase {

  public SchedDbaseImpl() throws RemoteException { super(); }

  // main() method registers a SchedDbaseImpl object with the
  // local RMI naming service, using the first command-line
  // argument as the name of the service, and the second as
  // the URL for the JDBC connection.
  public static void main(String argv[]) {
    System.setSecurityManager(new RMISecurityManager());

    try {
      String name = argv[0];
      String dbURL = argv[1];
      System.out.println("Registering SchedDbaseImpl with "
                         + "naming service as " + name);
      SchedDbaseImpl server = new SchedDbaseImpl();
      Class.forName("weblogic.jdbc.oci.Driver");
      SchedDbaseItem.dbConn =
        DriverManager.getConnection("jdbc:weblogic:oracle:hb1",
                                    "user", "passwd");
      Registry r = LocateRegistry.getRegistry(1234);
      r.rebind(name, server);
      System.out.println(name + " ready.");
    }
    catch (Exception e) {
      System.out.println("Exception while registering "
                         + "SchedDbaseImpl: \n");
      e.printStackTrace();
      System.exit(2);
    }
  }

    // Methods for creating/retrieving resources
  public RMISchedResource getResource(int rid)
                          throws RemoteException {
    SchedResourceImpl res = new SchedResourceImpl(rid);
    return res;
  }

  public RMISchedResource newResource(String n, int t, float s)
                          throws RemoteException {
    SchedResourceImpl res = new SchedResourceImpl(n, t, s);
    return res;
  }

  public Vector getAllResources() throws RemoteException {
    Vector resList = new Vector();
    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT distinct(rid) FROM resource");
      while (r.next()) {
        int id = r.getInt("rid");
        SchedResourceImpl res = new SchedResourceImpl(id);
        if (res.isValid()) {
          resList.addElement(res);
        }
      }
    }
    catch (Exception e) {}

    return resList;
  }

  // Methods for creating/retrieving tasks
  public RMISchedTask getTask(int id) throws RemoteException {
    SchedTaskImpl task = new SchedTaskImpl(id);
    return task;
  }

  public RMISchedTask newTask(int t, float sz) throws RemoteException {
    SchedTaskImpl task = new SchedTaskImpl(t, sz);
    return task;
  }

  public Vector getAllTasks() throws RemoteException {
    Vector taskList = new Vector();
    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT distinct(tid) FROM task");
      while (r.next()) {
        int id = r.getInt("tid");
        SchedTaskImpl task = new SchedTaskImpl(id);
        if (task.isValid()) {
          taskList.addElement(task);
        }
      }
    }
    catch (Exception e) {}

    return taskList;
  }

  // Methods for creating/retrieving constraints
  public RMITimeConstraint newConstraint(int type, int t1, int t2)
                           throws RemoteException {
    TimeConstraintImpl c = new TimeConstraintImpl(type, t1, t2);

    // Create a new record in the database.
    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      int numr = s.executeUpdate("INSERT time_constraint SET type = "
                                 + type + " task1 = " + t1
                                 + " task2 = " + t2);
      if (numr != 1)
        c.valid = false;
      else
        c.valid = true;
    }
    catch (SQLException e) {
      c.valid = false;
    }

    return c;
  }

  public Vector constraintsFor(int tid) throws RemoteException {
    Vector constraints = new Vector();

    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT task1, task2, type FROM "
                                   + "time_constraint where task1 = "
                                   + tid + " or task2 = " + tid);
      while (r.next()) {
        int tid1 = r.getInt("task1");
        int tid2 = r.getInt("task2");
        int type = r.getInt("type");
        TimeConstraintImpl c = new TimeConstraintImpl(type, tid1, tid2);
        constraints.addElement(c);
      }
    }
    catch (Exception e) {}

    return constraints;
  }

  // Methods for creating/retrieving resource assignments
  public RMIResAssignment newResAssignment(int rid, int tid, Date time)
                          throws RemoteException {
    ResAssignmentImpl r = new ResAssignmentImpl(rid, tid, time);

    // Create a new record in the database.
    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      int numr = s.executeUpdate("INSERT res_assignment SET resource = "
                                 + rid + " task = " + tid
                                 + " time = " + time);
      if (numr != 1)
        r.valid = false;
      else
        r.valid = true;
    }
    catch (SQLException e) {
      r.valid = false;
    }

    return r;
  }

  public Vector assignmentsFor(int rid) throws RemoteException {
    Vector ras = new Vector();

    try {
      Statement s = SchedDbaseItem.dbConn.createStatement();
      ResultSet r = s.executeQuery("SELECT task, time FROM "
                                   + "res_assignment where resource = "
                                   + rid);
      while (r.next()) {
        int tid = r.getInt("task");
        Date time = r.getDate("time");
        ResAssignmentImpl ra = new ResAssignmentImpl(rid, tid, time);
        ras.addElement(ra);
      }
    }
    catch (Exception e) {}

    return ras;
  }
}

A client that uses RMI to look up objects in the database is shown in Example 7-12. This particular client is requesting an RMISchedDbase object registered under the name "ScheduleDataServer" on a remote host:

(RMISchedDbase)Naming.lookup("//my.server/ScheduleDataServer");

Example 7-12. Client for the RMI-Based Schedule Data Server

package dcj.examples.dbase;

import java.rmi.*;
import java.util.Vector;

public class RMIScheduler {
  public static void main(String argv[]) {
    System.setSecurityManager(new RMISecurityManager());
    try {
      RMISchedDbase dbase =
        (RMISchedDbase)Naming.lookup("rmi://my.server/ScheduleDataServer");
      Vector resources = dbase.getAllResources();
      System.out.println("Got " + resources.size() + " resources.");
    }
    catch (Exception e) {
      System.out.println("Exception: " + e);
      e.printStackTrace();
    }
  }
}

Before this client can access the object, we have to register an instance of the SchedDbaseImpl class on the remote data server by invoking its main() method. This can be done by executing the following rmiregistry command (the commands shown are for a Unix server):

my.server% rmiregistry &
my.server% java dcj.examples.dbase.SchedDbaseImpl ScheduleDataServer
Registering SchedDbaseImpl with naming service as ScheduleDataServer
ScheduleDataServer ready.
my.server%

Then the client scheduler can be run (the commands are shown for a Windows-based client):

C:\SCHED> java dcj.examples.dbase.RMIScheduler
Got 17 resources.

C:\SCHED>


Library Navigation Links

Copyright © 2001 O'Reilly & Associates. All rights reserved.
