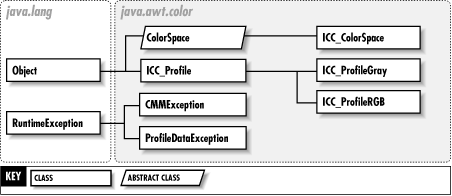

The java.awt.color package includes the abstract ColorSpace class, which defines methods necessary for converting colors between arbitrary color spaces. The package also contains implementations of the ColorSpace class based on data contained in ICC profile files. (The ICC is the international color standards body.) Most applications do not need to use this package; it is required only for applications that perform sophisticated image processing or require extremely accurate device-independent color display. Figure 10-1 shows the class hierarchy of this package, which is new in Java 1.2.
This package does not contain classes for representing colors. See the java.awt.Color class instead.
| CMMException | Java 1.2 | |
|
||
| java.awt.color | serializable unchecked | |
Signals that an error has occurred in the internal color space management code.
| public class CMMException extends RuntimeException { | ||
| // | Public Constructors | |
| public CMMException (String s); | ||
| } | ||
Hierarchy: Object-->Throwable(Serializable)-->Exception-->RuntimeException-->CMMException
| ColorSpace | Java 1.2 | |
|
||
| java.awt.color | ||
This abstract class encapsulates a color space: a system of representing colors using some number of floating-point color components. For examples, sRGB is a proposed standard color space that represents colors in terms of red, green, and blue components, while CIEXYZ is an international standard color space that represents colors in terms of three color components named X, Y, and Z. Typically, only applications that are doing image processing or are concerned with very precise color reproduction need to use this class.
ColorSpace does not have a public constructor. You can obtain an instance by calling the static getInstance() method and passing in one of the CS_ constants to specify the type of color space you want. Alternatively, implement and instantiate your own concrete subclass. Each ColorSpace object has methods to convert a color to and from the standard sRGB and CIEXYZ color spaces. This ensures that any color, regardless of its color space, can be converted to the red, green, and blue values used by computer display devices. It also ensures that a color represented in an arbitrary color space can be transformed to any other color space by first converting to an intermediate CIEXYZ representation.
| public abstract class ColorSpace { | ||
| // | Protected Constructors | |
| protected ColorSpace (int type, int numcomponents); | ||
| // | Public Constants | |
| public static final int CS_CIEXYZ ; | =1001 | |
| public static final int CS_GRAY ; | =1003 | |
| public static final int CS_LINEAR_RGB ; | =1004 | |
| public static final int CS_PYCC ; | =1002 | |
| public static final int CS_sRGB ; | =1000 | |
| public static final int TYPE_2CLR ; | =12 | |
| public static final int TYPE_3CLR ; | =13 | |
| public static final int TYPE_4CLR ; | =14 | |
| public static final int TYPE_5CLR ; | =15 | |
| public static final int TYPE_6CLR ; | =16 | |
| public static final int TYPE_7CLR ; | =17 | |
| public static final int TYPE_8CLR ; | =18 | |
| public static final int TYPE_9CLR ; | =19 | |
| public static final int TYPE_ACLR ; | =20 | |
| public static final int TYPE_BCLR ; | =21 | |
| public static final int TYPE_CCLR ; | =22 | |
| public static final int TYPE_CMY ; | =11 | |
| public static final int TYPE_CMYK ; | =9 | |
| public static final int TYPE_DCLR ; | =23 | |
| public static final int TYPE_ECLR ; | =24 | |
| public static final int TYPE_FCLR ; | =25 | |
| public static final int TYPE_GRAY ; | =6 | |
| public static final int TYPE_HLS ; | =8 | |
| public static final int TYPE_HSV ; | =7 | |
| public static final int TYPE_Lab ; | =1 | |
| public static final int TYPE_Luv ; | =2 | |
| public static final int TYPE_RGB ; | =5 | |
| public static final int TYPE_XYZ ; | =0 | |
| public static final int TYPE_YCbCr ; | =3 | |
| public static final int TYPE_Yxy ; | =4 | |
| // | Public Class Methods | |
| public static ColorSpace getInstance (int colorspace); | ||
| // | Public Instance Methods | |
| public abstract float[ ] fromCIEXYZ (float[ ] colorvalue); | ||
| public abstract float[ ] fromRGB (float[ ] rgbvalue); | ||
| public String getName (int idx); | ||
| public int getNumComponents (); | ||
| public int getType (); | ||
| public boolean isCS_sRGB (); | ||
| public abstract float[ ] toCIEXYZ (float[ ] colorvalue); | ||
| public abstract float[ ] toRGB (float[ ] colorvalue); | ||
| } | ||
Subclasses: ICC_ColorSpace
Passed To: Color.{Color(), getColorComponents(), getComponents()}, java.awt.image.ColorConvertOp.ColorConvertOp(), java.awt.image.ColorModel.ColorModel(), java.awt.image.ComponentColorModel.ComponentColorModel(), java.awt.image.DirectColorModel.DirectColorModel(), java.awt.image.PackedColorModel.PackedColorModel()
Returned By: Color.getColorSpace(), ColorSpace.getInstance(), java.awt.image.ColorModel.getColorSpace()
| ICC_ColorSpace | Java 1.2 | |
|
||
| java.awt.color | ||
This concrete subclass of ColorSpace defines a color space based on an ICC_Profile object that represents color space profile data in a format defined by the International Color Consortium (ICC). See http://www.color.org for information about ICC standards.
| public class ICC_ColorSpace extends ColorSpace { | ||
| // | Public Constructors | |
| public ICC_ColorSpace (ICC_Profile profile); | ||
| // | Public Instance Methods | |
| public ICC_Profile getProfile (); | ||
| // | Public Methods Overriding ColorSpace | |
| public float[ ] fromCIEXYZ (float[ ] colorvalue); | ||
| public float[ ] fromRGB (float[ ] rgbvalue); | ||
| public float[ ] toCIEXYZ (float[ ] colorvalue); | ||
| public float[ ] toRGB (float[ ] colorvalue); | ||
| } | ||
Hierarchy: Object-->ColorSpace-->ICC_ColorSpace
| ICC_Profile | Java 1.2 | |
|
||
| java.awt.color | ||
This class represents an International Color Consortium (ICC) color space profile. For details about the profile format, see the ICC Profile Format Specification, Version 3.4, at http://www.color.org. Only applications working with custom or specialized color spaces ever need to use this class.
ICC_Profile does not have a public constructor. Obtain an instance by calling the static getInstance() method. There are versions of this method that read profile data from a java.io.InputStream, a string, and an array of bytes. The fourth version of this method takes one of the CS_ constants defined by the ColorSpace class and reads a built-in profile for that color space. (In Sun's Java 1.2 implementation, the profile data for these built-in standard color spaces is in the directory jre/lib/cmm.)
| public class ICC_Profile { | ||
| // | No Constructor | |
| // | Public Constants | |
| public static final int CLASS_ABSTRACT ; | =5 | |
| public static final int CLASS_COLORSPACECONVERSION ; | =4 | |
| public static final int CLASS_DEVICELINK ; | =3 | |
| public static final int CLASS_DISPLAY ; | =1 | |
| public static final int CLASS_INPUT ; | =0 | |
| public static final int CLASS_NAMEDCOLOR ; | =6 | |
| public static final int CLASS_OUTPUT ; | =2 | |
| public static final int icAbsoluteColorimetric ; | =3 | |
| public static final int icCurveCount ; | =8 | |
| public static final int icCurveData ; | =12 | |
| public static final int icHdrAttributes ; | =56 | |
| public static final int icHdrCmmId ; | =4 | |
| public static final int icHdrColorSpace ; | =16 | |
| public static final int icHdrCreator ; | =80 | |
| public static final int icHdrDate ; | =24 | |
| public static final int icHdrDeviceClass ; | =12 | |
| public static final int icHdrFlags ; | =44 | |
| public static final int icHdrIlluminant ; | =68 | |
| public static final int icHdrMagic ; | =36 | |
| public static final int icHdrManufacturer ; | =48 | |
| public static final int icHdrModel ; | =52 | |
| public static final int icHdrPcs ; | =20 | |
| public static final int icHdrPlatform ; | =40 | |
| public static final int icHdrRenderingIntent ; | =64 | |
| public static final int icHdrSize ; | =0 | |
| public static final int icHdrVersion ; | =8 | |
| public static final int icPerceptual ; | =0 | |
| public static final int icRelativeColorimetric ; | =1 | |
| public static final int icSaturation ; | =2 | |
| public static final int icSigAbstractClass ; | =1633842036 | |
| public static final int icSigAToB0Tag ; | =1093812784 | |
| public static final int icSigAToB1Tag ; | =1093812785 | |
| public static final int icSigAToB2Tag ; | =1093812786 | |
| public static final int icSigBlueColorantTag ; | =1649957210 | |
| public static final int icSigBlueTRCTag ; | =1649693251 | |
| public static final int icSigBToA0Tag ; | =1110589744 | |
| public static final int icSigBToA1Tag ; | =1110589745 | |
| public static final int icSigBToA2Tag ; | =1110589746 | |
| public static final int icSigCalibrationDateTimeTag ; | =1667329140 | |
| public static final int icSigCharTargetTag ; | =1952543335 | |
| public static final int icSigCmyData ; | =1129142560 | |
| public static final int icSigCmykData ; | =1129142603 | |
| public static final int icSigColorSpaceClass ; | =1936744803 | |
| public static final int icSigCopyrightTag ; | =1668313716 | |
| public static final int icSigDeviceMfgDescTag ; | =1684893284 | |
| public static final int icSigDeviceModelDescTag ; | =1684890724 | |
| public static final int icSigDisplayClass ; | =1835955314 | |
| public static final int icSigGamutTag ; | =1734438260 | |
| public static final int icSigGrayData ; | =1196573017 | |
| public static final int icSigGrayTRCTag ; | =1800688195 | |
| public static final int icSigGreenColorantTag ; | =1733843290 | |
| public static final int icSigGreenTRCTag ; | =1733579331 | |
| public static final int icSigHead ; | =1751474532 | |
| public static final int icSigHlsData ; | =1212961568 | |
| public static final int icSigHsvData ; | =1213421088 | |
| public static final int icSigInputClass ; | =1935896178 | |
| public static final int icSigLabData ; | =1281450528 | |
| public static final int icSigLinkClass ; | =1818848875 | |
| public static final int icSigLuminanceTag ; | =1819635049 | |
| public static final int icSigLuvData ; | =1282766368 | |
| public static final int icSigMeasurementTag ; | =1835360627 | |
| public static final int icSigMediaBlackPointTag ; | =1651208308 | |
| public static final int icSigMediaWhitePointTag ; | =2004119668 | |
| public static final int icSigNamedColor2Tag ; | =1852009522 | |
| public static final int icSigNamedColorClass ; | =1852662636 | |
| public static final int icSigOutputClass ; | =1886549106 | |
| public static final int icSigPreview0Tag ; | =1886545200 | |
| public static final int icSigPreview1Tag ; | =1886545201 | |
| public static final int icSigPreview2Tag ; | =1886545202 | |
| public static final int icSigProfileDescriptionTag ; | =1684370275 | |
| public static final int icSigProfileSequenceDescTag ; | =1886610801 | |
| public static final int icSigPs2CRD0Tag ; | =1886610480 | |
| public static final int icSigPs2CRD1Tag ; | =1886610481 | |
| public static final int icSigPs2CRD2Tag ; | =1886610482 | |
| public static final int icSigPs2CRD3Tag ; | =1886610483 | |
| public static final int icSigPs2CSATag ; | =1886597747 | |
| public static final int icSigPs2RenderingIntentTag ; | =1886597737 | |
| public static final int icSigRedColorantTag ; | =1918392666 | |
| public static final int icSigRedTRCTag ; | =1918128707 | |
| public static final int icSigRgbData ; | =1380401696 | |
| public static final int icSigScreeningDescTag ; | =1935897188 | |
| public static final int icSigScreeningTag ; | =1935897198 | |
| public static final int icSigSpace2CLR ; | =843271250 | |
| public static final int icSigSpace3CLR ; | =860048466 | |
| public static final int icSigSpace4CLR ; | =876825682 | |
| public static final int icSigSpace5CLR ; | =893602898 | |
| public static final int icSigSpace6CLR ; | =910380114 | |
| public static final int icSigSpace7CLR ; | =927157330 | |
| public static final int icSigSpace8CLR ; | =943934546 | |
| public static final int icSigSpace9CLR ; | =960711762 | |
| public static final int icSigSpaceACLR ; | =1094929490 | |
| public static final int icSigSpaceBCLR ; | =1111706706 | |
| public static final int icSigSpaceCCLR ; | =1128483922 | |
| public static final int icSigSpaceDCLR ; | =1145261138 | |
| public static final int icSigSpaceECLR ; | =1162038354 | |
| public static final int icSigSpaceFCLR ; | =1178815570 | |
| public static final int icSigTechnologyTag ; | =1952801640 | |
| public static final int icSigUcrBgTag ; | =1650877472 | |
| public static final int icSigViewingCondDescTag ; | =1987405156 | |
| public static final int icSigViewingConditionsTag ; | =1986618743 | |
| public static final int icSigXYZData ; | =1482250784 | |
| public static final int icSigYCbCrData ; | =1497588338 | |
| public static final int icSigYxyData ; | =1501067552 | |
| public static final int icTagReserved ; | =4 | |
| public static final int icTagType ; | =0 | |
| public static final int icXYZNumberX ; | =8 | |
| // | Public Class Methods | |
| public static ICC_Profile getInstance (java.io.InputStream s) throws java.io.IOException; | ||
| public static ICC_Profile getInstance (String fileName) throws java.io.IOException; | ||
| public static ICC_Profile getInstance (byte[ ] data); | ||
| public static ICC_Profile getInstance (int cspace); | ||
| // | Property Accessor Methods (by property name) | |
| public int getColorSpaceType (); | ||
| public byte[ ] getData (); | ||
| public byte[ ] getData (int tagSignature); | ||
| public int getMajorVersion (); | ||
| public int getMinorVersion (); | ||
| public int getNumComponents (); | ||
| public int getPCSType (); | ||
| public int getProfileClass (); | ||
| // | Public Instance Methods | |
| public void setData (int tagSignature, byte[ ] tagData); | ||
| public void write (String fileName) throws java.io.IOException; | ||
| public void write (java.io.OutputStream s) throws java.io.IOException; | ||
| // | Protected Methods Overriding Object | |
| protected void finalize (); | ||
| } | ||
Subclasses: ICC_ProfileGray, ICC_ProfileRGB
Passed To: ICC_ColorSpace.ICC_ColorSpace(), java.awt.image.ColorConvertOp.ColorConvertOp()
Returned By: ICC_ColorSpace.getProfile(), ICC_Profile.getInstance(), java.awt.image.ColorConvertOp.getICC_Profiles()
| ICC_ProfileGray | Java 1.2 | |
|
||
| java.awt.color | ||
A specialized subclass of ICC_Profile that is used to represent certain grayscale color spaces that meet criteria that allow color space conversions to be optimized. Applications never need to use this class.
| public class ICC_ProfileGray extends ICC_Profile { | ||
| // | No Constructor | |
| // | Public Instance Methods | |
| public float getGamma (); | ||
| public short[ ] getTRC (); | ||
| // | Public Methods Overriding ICC_Profile | |
| public float[ ] getMediaWhitePoint (); | ||
| } | ||
Hierarchy: Object-->ICC_Profile-->ICC_ProfileGray
| ICC_ProfileRGB | Java 1.2 | |
|
||
| java.awt.color | ||
A specialized subclass of ICC_Profile that is used to represent certain RGB color spaces that meet criteria that allow color space conversions to be optimized. Applications never need to use this class.
| public class ICC_ProfileRGB extends ICC_Profile { | ||
| // | No Constructor | |
| // | Public Constants | |
| public static final int BLUECOMPONENT ; | =2 | |
| public static final int GREENCOMPONENT ; | =1 | |
| public static final int REDCOMPONENT ; | =0 | |
| // | Public Instance Methods | |
| public float[ ][ ] getMatrix (); | ||
| // | Public Methods Overriding ICC_Profile | |
| public float getGamma (int component); | ||
| public float[ ] getMediaWhitePoint (); | ||
| public short[ ] getTRC (int component); | ||
| } | ||
Hierarchy: Object-->ICC_Profile-->ICC_ProfileRGB
| ProfileDataException | Java 1.2 | |
|
||
| java.awt.color | serializable unchecked | |
Signals that an error occurred while reading ICC profile data.
| public class ProfileDataException extends RuntimeException { | ||
| // | Public Constructors | |
| public ProfileDataException (String s); | ||
| } | ||
Hierarchy: Object-->Throwable(Serializable)-->Exception-->RuntimeException-->ProfileDataException
 |  |  |
| 9.1. The java.awt Package |  | 11. The java.awt.datatransfer Package |
Copyright © 2001 O'Reilly & Associates. All rights reserved.
