21.3. Primitive Types

The W3C XML Schema Language provides 44 built-in simple types for text strings. Each type has a value space and a lexical space. The value space is the set of unique meanings for the type, which may or may not be text. In some sense, the value space is composed of Platonic forms. The lexical space is the set of text strings that correspond to particular points in the value space. For example, the xs:boolean type has the value space true and false. However, its lexical space contains four strings: true, false, 0, and 1. true and 1 both map to the same value true, while false and 0 map to the single value false. In cases like this where multiple strings in the lexical space map to a single value, then one of those strings is selected as the canonical lexical representation. For instance, the canonical lexical representations of true and false are the strings true and false.

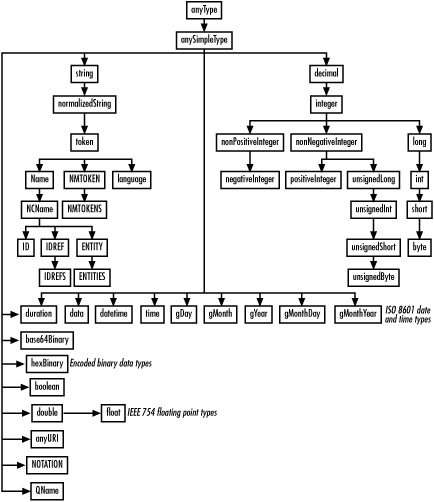

The primitive types are organized in a hierarchy. All simple types descend from an abstract ur-type called xs:anySimpleType, which is itself a descendant of an abstract ur-type called xs:anyType that includes both simple and complex types. Simple types are derived from other simple types by union, restriction, or listing. For example, the xs:nonNegativeInteger type is derived from the xs:integer type by setting its minInclusive facet to 0. The xs:integer type is derived from the xs:decimal type by setting its fractionDigits facet to 0. Figure 21-1 diagrams the complete hierarchy of built-in types. The xs:simpleType element allows you to apply facets to these types to create your own derived types that extend this hierarchy.

Figure 21-1

Figure 21-1. The simple type hierarchy

The types are organized in the following section alphabetically. For each type the value and lexical spaces are described, and some examples of permissible instances are provided.

xs:anyURI

The xs:anyURI type indicates a Uniform Resource Identifier. This includes not only Uniform Resource Locators (URLs), but also Uniform Resource Names (URNs). Both relative and absolute URLs are allowed. Legal xs:anyURI values include the following:

More specifically, elements of this type must be composed exclusively of the ASCII letters A-Z and a-z and digits 0-9, as well as the ASCII punctuation marks -, _, ., !, ~, *, ', (, and ). In addition, the ASCII punctuation marks ;, /, ?, :, @, &, =, +, $, %, and , may be used for their intended purposes in URLs, e.g., the forward slash can be used as the path separator but not as part of a filename. All other characters must be escaped by encoding each byte of their UTF-8 representation as a percent sign followed by the hexadecimal value of the character. Although there are other restrictions on what does and does not make a legal URI, in practice the only conditions that schema processors check are the limitations on the characters that may appear.

Constraining facets that apply to xs:anyURI are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:base64Binary

The xs:base64Binary type represents an arbitrary sequence of bytes that has been encoded in ASCII characters using the Base-64 algorithm defined in RFC 2045, Multipurpose Internet Mail Extensions (MIME) Part One: Format of Internet Message Bodies. The data is divided into lines of 76 characters or less. The letters A-Z and a-z, the digits 0-9, and the punctuation marks + and / are used to encode data. The equals sign is use to pad data at the end if necessary. Other characters are allowed, but are ignored by the Base-64 decoder.

The constraining facets that apply to xs:base64Binary are length, minLength, maxLength, pattern, enumeration, and whiteSpace. Unlike string types, the values specified by the length, minLength, and maxLength facets refer to the number of bytes in the decoded data, not to the number of characters in the encoded data.

xs:boolean

The xs:boolean type represents a logical Boolean whose value is either true or false. There are exactly four legal values for elements and attributes whose type is Boolean:

0is the same as false, and 1 is the same as true. Only two constraining facets apply to xs:boolean: pattern and whiteSpace.

xs:byte

The xs:byte type represents an integer with a value between -128 and 127. It is a subtype of the xs:short type. Legal values include any sequence of digits whose value is less than or equal to 127 and greater than or equal to -128. An optional leading plus or minus sign is allowed. For example, these are legal bytes:

Constraining facets that apply to xs:byte are length, minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:date

The xs:date type represents a specific day in history such as September 26, 2001. Dates are written in the form CCYY-MM-DD. For example, September 26, 2001 is written as 2001-09-26. Dates in the far future and distant past can be written with more than four digits in the year, but at least four digits are required. Dates before year 1 are written with a preceding minus sign. (There was no year 0.) An optional time zone indicator in the form ±hh:mm may be suffixed to provide a time zone as an offset from Coordinated Universal Time (Greenwich Mean Time, UTC). For example, 2001-09-26-05:00 is September 26, 2001 in the U.S. Eastern time zone. A Z can be used instead to indicate UTC. These are all valid values of type xs:date:

Constraining facets that apply to xs:date are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. Note, however, that when the time zone is not specified, it's not always possible to determine unambiguously whether one date begins after another.

xs:dateTime

The xs:dateTime type represents a specific moment in history, such as 3:32 P.M., September 26, 2001. Dates are written in the form CCYY-MM-DDThh:mm:ss. For example, 3:32 P.M., September 26, 2001 is written as 2001-09-26T15:32:00. Decimal fractions of a second can be indicated by appending a period and any number of digits after the seconds. Dates in the far future and distant past can be written with more than four digits in the year, but at least four digits are required. Dates before year 1 are written with a preceding minus sign. (There was no year 0.) An optional time zone indicator in the form ±hh:mm may be suffixed to provide a time zone as an offset from Coordinated Universal Time (Greenwich Mean Time, UTC). For example, 2001-09-26T15:32:00-05:00 is 3:32 P.M., September 26, 2001 in the U.S. Eastern time zone. A Z can be used instead to indicate UTC. These are all valid values of type xs:dateTime:

Constraining facets that apply to xs:dateTime are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. Note, however, that when the time zone is not specified, it's not always possible to determine unambiguously whether one time falls after another.

xs:decimal

xs:decimal is the base type for all numeric built-in schema types, except xs:float and xs:double. It represents a base 10 number with any finite number of the digits 0-9 before and after the decimal point. It may be prefixed with either a plus sign or a minus sign. These are all valid values of type xs:decimal:

This type is not conducive to localization. Only European digits can be used, and only a period can be used as a decimal point. Exponential and scientific notation are not supported.

Constraining facets that apply to xs:decimal are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, fractionDigits, and totalDigits.

xs:double

The xs:double type is designed to represent eight-byte, binary floating-point numbers in IEEE 754 format, such as is used by the double type in Java and many C compilers. This includes the special values INF for infinity and NaN for not a number, used for the results of unconventional operations like dividing by zero and taking the square root of a negative number. Because not all binary numbers can be precisely represented by decimal numbers, it is possible that two different decimal representations in the lexical space map to the same value (and vice versa). In this case, the closest approximation IEEE-754 value is chosen. These are all legal values of type xs:double:

Constraining facets that apply to xs:double are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace.

xs:duration

The xs:duration type represents a length of time such as 15 minutes; 2 hours; or 3 years, 7 months, 2 days, 8 hours, 32 minutes, and 12 seconds. It does not have a specific beginning or end, just a length. Durations are represented using the ISO-8601 standard format PnYnMnDTnHnMnS. nY gives the number of years, nM the number of months, nD the number of days, nH the number of hours, nM the number of minutes, and nS the number of seconds. The number of years, months, days, hours, minutes, and seconds are all given as non-negative integers. The number of seconds is a decimal number with as many places after the decimal point as necessary. For example, in this format, 3 years, 7 months, 2 days, 8 hours, 32 minutes, and 12 seconds is written as P3Y7M2DT8H32M12S. Any values that are zero can be omitted. Thus, a duration of 2 years and 2 minutes can be written as P2YT2M. If there are no hours, minutes, or seconds, then the T is omitted. Thus, a duration of two years is written as P2Y. A leading minus sign before the P indicates a negative duration.

Constraining facets that apply to xs:duration are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, because the number of days in a month varies from 28 to 31 and the number of days in a year varies from 365 to 366, durations are not always perfectly ordered. For instance, whether P1M is greater than, equal to, or less than P30D depends on which month it is.

xs:ENTITIES

The xs:ENTITIES type indicates that the value is a whitespace-separated list of unparsed entity names declared in the instance document's DTD. This is the same as the DTD ENTITIES attribute type.

Constraining facets that apply to xs:ENTITIES are length, minLength, maxLength, enumeration, pattern, and whiteSpace. The length, minLength, and maxLength facets all refer to the number of entity names in the list.

xs:ENTITY

The xs:ENTITY type is a subtype of xs:NCNAME with the additional restriction that the value be declared as an unparsed entity in the document's DTD. The legal lexical values of type xs:ENTITY are exactly the same as for xs:NCNAME. Constraining facets that apply to xs:ENTITY are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

TIP: A schema cannot declare either parsed or unparsed entities. An XML document that uses any entities other than the five predefined ones must have a DOCTYPE declaration and a DTD.

xs:float

The xs:float type represents four-byte, binary floating-point numbers in IEEE-754 format, such as is the float type in Java and many C compilers. This includes the special values INF for infinity and NaN for not a number, used for the results of unconventional operations like dividing by zero and taking the square root of a negative number. Because not all binary numbers can be precisely represented by decimal numbers, it is possible that two different decimal representations in the lexical space map to the same value (and vice versa). In this case, the closest approximation of the IEEE-754 value is chosen. These are all legal values of type xs:float:

Constraining facets that apply to xs:float are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace.

xs:gDay

The xs:gDay type represents a certain day of the month such as the 14th or the 23rd in no particular month. The format used is -- -DD plus an optional time zone suffix in the form ±hh:mm or Z to indicate Coordinated Universal Time (UTC). These are all valid xs:gDay values:

The g indicates that the day is given in the Gregorian calendar. Schema date types are not localizable to non-Gregorian calendars. If you need a different calendar, you'll need to derive from xs:string using the pattern facet.

Constraining facets that apply to xs:gDay are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, if the time zones are not specified it may not be possible to conclusively determine whether one day is greater than or less than another. If time zones are specified, days are compared by when they start. Thus ---29-05:00 is greater than ---29Z, which is greater than ---29+02:00.

xs:gMonth

The xs:gMonth type represents a certain month of the year in the Gregorian calendar as an integer between --01-- and --12--. An optional time zone suffix in the form ±hh:mm or Z to indicate Coordinated Universal Time (UTC) can be added as well. These are all valid xs:gMonth values:

TIP: XML Schema Part 2: Datatypes has a mistake here. The date time data types are supposed to be in the format specified by the ISO-8601 standard, according to which the proper format for a month is an integer between --01 and --12 with no trailing hyphens. Exactly how this will be fixed remains to be determined, though at the least months of the form --01 and --10 will be allowed in the future.

The g indicates that the month is given using the Gregorian calendar. Schema date types are not localizable to non-Gregorian calendars. If you need a different calendar, you'll need to derive from xs:string using the pattern facet.

Constraining facets that apply to xs:gMonth are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, if the time zones are not specified, it may not be possible to determine conclusively whether one month starts before another. If time zones are specified, months are compared by their first moment. Thus, --12---05:00 is greater than --12--Z, which is greater than --12--+02:00.

xs:gMonthDay

The xs:gMonthDay type represents a certain day of a certain month in no particular year. It is written in the format -- MM-DD plus an optional time zone suffix in the form ±hh:mm or Z to indicate Coordinated Universal Time (UTC). These are all valid xs:gMonthDay values:

The g indicates that the month and day are specified in the Gregorian calendar. Schema date types are not localizable to non-Gregorian calendars. For a different calendar, you'll have to derive from xs:string using the pattern facet.

Constraining facets that apply to xs:gMonthDay are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, if the time zones are not specified, it is not always possible to determine conclusively whether one day starts before another. If time zones are specified, days are compared by their first moment in the same year.

xs:gYear

The xs:gYear type represents a year in the Gregorian calendar. It is written in the format CCYY plus an optional time zone suffix in the form ±hh:mm or Z to indicate Coordinated Universal Time (UTC). Dates before year 1 can be indicated by a minus sign. At least four digits are used, but additional digits can be added to indicate years after 9999 or before 9999 BCE. These are all valid xs:gYear values in their order of occurrence:

Constraining facets that apply to xs:gYear are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, if the time zones are not specified, it may not be possible to determine conclusively whether one year starts before another. If time zones are specified, years are compared by their first moment.

xs:gYearMonth

The xs:gYearMonth type represents a month and year in the Gregorian calendar, such as March, 2002. It is written in the format CCYY-MM plus an optional time zone suffix in the form ±hh:mm or Z to indicate Coordinated Universal Time (UTC). Dates before year 1 can be indicated by a minus sign. At least four digits are used, but additional digits can be added to indicate years after 9999 or before 9999 BCE. These are all valid xs:gYearMonth values in their order of occurrence:

Constraining facets that apply to xs:gYearMonth are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. However, if the time zones are not specified it may not be possible to determine conclusively whether one month and year starts before another.

xs:hexBinary

The xs:hexBinary type represents an arbitrary sequence of bytes that has been encoded by replacing each byte of data with two hexadecimal digits from 0 through F (A is 10, B is 11, C is 12, etc.). Either upper- or lowercase letters may be used in whatever character set the document is written. In UTF-8 or ASCII, this has the effect of exactly doubling the space used for the data.

The constraining facets that apply to xs:hexBinary are length, minLength, maxLength, pattern, enumeration, and whiteSpace. Unlike string types, the values specified by the length, minLength, and maxLength facets refer to the number of bytes in the decoded data, not to the number of characters in the encoded data.

xs:ID

xs:ID is a subtype of xs:NCName with the additional restriction that the value is unique among other items of type xs:ID within the same document. The legal lexical values of type xs:ID are exactly the same as for xs:NCName. Constraining facets that apply to xs:ID are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:IDREF

xs:IDREF is a subtype of xs:NCName with the additional restriction that the value is used elsewhere in the instance document on an item with type xs:ID. The legal lexical values of type xs:ID are exactly the same as for xs:NCName. Constraining facets that apply to xs:IDREF are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:IDREFS

The xs:IDREFS type indicates that the value is a whitespace-separated list of xs:ID type values used elsewhere in the instance document. This is the same as the DTD IDREFS attribute type.

Constraining facets that apply to xs:IDREFS are length, minLength, maxLength, enumeration, pattern, and whiteSpace. The length, minLength, and maxLength facets all refer to the number of IDREFs in the list.

xs:int

The xs:int type represents a signed integer small enough to be represented as a four-byte, two's complement number such as Java's int primitive data type. It is derived from xs:long by setting the maxInclusive facet to 2147483647 and the minInclusive facet to -2147483648. These are all legal values of type xs:int:

Constraining facets that apply to xs:int are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:integer

The xs:integer type represents a mathematical integer of arbitrary size. The type is derived from xs:double by fixing the fractionDigits facet at 0. It may be prefixed with either a plus sign or a minus sign. If no sign is present, a plus is assumed. These are all legal values of type xs:integer:

Constraining facets that apply to xs:integer are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:language

Elements and attributes with type xs:language contain a language code as defined in RFC 1766, Tags for the Identification of Languages. These are essentially the acceptable values for the xml:lang attribute described in Chapter 5. If possible, this should be one of the two-letter language codes defined in ISO 639, possibly followed by a country code. For languages that aren't listed in ISO 639, you can use one of the i-codes registered with IANA. If the language you need isn't present in either of these sets, you can make up your own language tag beginning with the prefix "x-" or "X-". Thus, these are acceptable language values:

Constraining facets that apply to xs:language are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:long

The xs:long type represents a signed integer that can be represented as an eight-byte, two's complement number such as Java's long primitive data type. It is derived from xs:integer by setting the maxInclusive facet to 9223372036854775807 and the minInclusive facet to -9223372036854775808. These are all legal values of type xs:long:

Constraining facets that apply to xs:long are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:Name

xs:Name is a subtype of xs:token that is restricted to legal XML 1.0 names. In other words, the value must consist exclusively of letters, digits, ideographs, and the underscore, hyphen, period, and colon. Digits, the hyphen, and the period may not be used to start a name, though they may be used inside the name. These are all legal values of type xs:Name:

Constraining facets that apply to xs:Name are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:NCName

An xs:NCName is a noncolonized name as defined in Namespaces in XML. This is a legal XML name that does not contain a colon. The value must consist exclusively of letters, digits, ideographs, and the underscore, hyphen, and period. Digits, the hyphen, and the period may not be used to start a name, though they may be used inside the name. These are all legal values of type xs:NCName:

Constraining facets that apply to xs:NCName are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:negativeInteger

The xs:negativeInteger type represents a mathematical integer that is strictly less than zero. It is derived from xs:integer by setting the maxInclusive facet to -1. These are all legal values of type xs:negativeInteger:

Constraining facets that apply to xs:negativeInteger are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:NMTOKEN

An xs:NMTOKEN is the schema equivalent of the DTD NMTOKEN attribute type. It is a subtype of xs:token that is restricted to legal XML 1.0 name tokens. These are the same as XML names except that there are no restrictions on what characters may be used to start the name token. In other words, the value must consist of one or more letters, digits, ideographs, and the underscore, hyphen, period, and colon. These are all legal values of type xs:NMTOKEN:

Constraining facets that apply to xs:NMTOKEN are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:NMTOKENS

The xs:NMTOKENS type is the schema equivalent of the DTD NMTOKENS attribute type. xs:NMTOKENS is derived from xs:NMTOKEN by list. Thus, a value of type xs:NMTOKENS contains one or more whitespace-separated name tokens. These are all legal values of type xs:NMTOKENS:

Constraining facets that apply to xs:NMTOKENS are length, minLength, maxLength, enumeration, pattern, and whiteSpace. The length, minLength, and maxLength facets all refer to the number of name tokens in the list.

xs:nonNegativeInteger

The xs:nonNegativeInteger type represents a mathematical integer that is greater than or equal to zero. It is derived from xs:integer by setting the minInclusive facet to 0. These are all legal values of type xs:nonNegativeInteger:

Constraining facets that apply to xs:nonNegativeInteger are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:nonPositiveInteger

The xs:nonPositiveInteger type represents a mathematical integer that is less than or equal to zero. It is derived from xs:integer by setting the maxInclusive facet to 0. These are all legal values of type xs:nonPositiveInteger:

Constraining facets that apply to xs:nonPositiveInteger are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:normalizedString

xs:normalizedString is derived from xs:string by setting the whiteSpace facet to replace so that the carriage return (#xD) and tab (#x9) characters are replaced by spaces in the normalized value. A normalized string can contain any characters that are allowed in XML, though depending on context, special characters such as <, &, and " may have to be escaped with character or entity references in the usual way. All legal strings are also legal lexical representations of type xs:normalizedString. However, a schema-aware parser that presents the normalized value of an element instead of the literal characters in the document will replace all carriage returns and tabs with spaces before passing the string to the client application.

Constraining facets that apply to xs:normalizedString are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:NOTATION

The xs:NOTATION type restricts a value to those qualified names declared as notations using an xs:notation element in the schema. This is an abstract type. In other words, you cannot directly declare that an element or attribute has type xs:NOTATION. Instead, you must first derive a new type from xs:NOTATION, most commonly by enumeration, and then declare that your element or attribute possesses the subtype. Constraining facets that apply to xs:NOTATION are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:positiveInteger

The xs:positiveInteger type represents a mathematical integer that is strictly greater than zero. It is derived from xs:integer by setting the minInclusive facet to 1. These are all legal values of type xs:positiveInteger:

Constraining facets that apply to xs:positiveInteger are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:QName

An xs:QName is a base type that is restricted to namespace-qualified names. The logical value of a qualified name is a namespace URI, local part pair. Lexically, qualified names are the same as XML names except that they may not contain more than one colon and that colon may not be the first character in the name. A qualified name may or may not be prefixed. If it is prefixed, then the prefix must be properly mapped to a namespace URI. If it is not prefixed, then the name must occur in the scope of a default namespace. These are all legal values of type xs:QName provided that this condition is met in context:

Constraining facets that apply to xs:QName are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:short

The xs:short type indicates a signed integer small enough to be represented as a two-byte, two's complement number such as Java's short primitive data type. It is derived from xs:int by setting the maxInclusive facet to 32767 and the minInclusive facet to -32768. These are all legal values of type xs:int:

Constraining facets that apply to xs:short are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:string

This is the most general simple type. Elements and attributes with type xs:string can contain any sequence of characters allowed in XML, though depending on context certain characters such as <, &, and " may have to be escaped with character or entity references in the usual way.

Constraining facets that apply to xs:string are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:time

The xs:time type represents a specific time of day on no particular day, such as 3:32 P.M. Times are written in the form ±hh:mm:ss.xxx using a 24-hour clock and as many fractions of a second as necessary. For example, 3:41 P.M. is written as 15:41:00. 3:41 A.M. and a half-second is written as 03:41:00.5. The Z suffix indicates Coordinated Universal Time (Greenwich Mean Time, UTC). Otherwise, the time zone can be indicated as an offset in hours and minutes from UTC. For example, 15:41:00-05:00 is 3:41 P.M., in the U.S. Eastern time zone. The time zone may be omitted, in which case the actual time is somewhat nondeterministic. These are all valid values of type xs:time:

Constraining facets that apply to xs:time are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, and whiteSpace. Note, however, that when the time zone is not specified, it's not always possible to determine unambiguously whether one time falls after another.

xs:token

xs:token is a subtype of xs:normalizedString whose normalized value does not contain any line feed (#xA) or tab (#x9) characters, does not have any leading or trailing whitespace, and has no sequence of two or more spaces. All legal strings are also legal lexical representations of type xs:normalizedString. However, a schema-aware parser that presents the normalized value of an element instead of the literal characters in the document will trim leading and trailing whitespace and compress all others runs of whitespace characters with a single space before passing the string to the client application.

Constraining facets that apply to xs:token are length, minLength, maxLength, pattern, enumeration, and whiteSpace.

xs:unsignedByte

The xs:unsignedByte type represents a non-negative integer that can be stored in one byte, such as the unsigned char type used by some (but not all) C compilers. It is derived from xs:unsignedShort by setting the maxInclusive facet to 255 (28-1). These are all legal values of type xs:unsignedByte:

Constraining facets that apply to xs:unsignedByte are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:unsignedInt

The xs:unsignedInt type represents a non-negative integer that can be stored in four bytes, such as the unsigned int type used by some C compilers. It is derived from xs:unsignedLong by setting the maxInclusive facet to 4294967295 (2321-1). These are all legal values of type xs:unsignedInt:

Constraining facets that apply to xs:unsignedInt are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:unsignedLong

The xs:unsignedLong type represents a non-negative integer that can be stored in eight bytes, such as the unsigned long type used by some C compilers. It is derived from xs:nonNegativeInteger by setting the maxInclusive facet to 18446744073709551615 (264-1). These are all legal values of type xs:unsignedLong:

Constraining facets that apply to xs:unsignedLong are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.

xs:unsignedShort

The xs:unsignedShort type represents a non-negative integer that can be stored in four bytes, such as the unsigned short type used by some C compilers. It is derived from xs:unsignedInt by setting the maxInclusive facet to 65535 (216-1). These are all legal values of type xs:unsignedShort:

Constraining facets that apply to xs:unsignedShort are minInclusive, maxInclusive, minExclusive, maxExclusive, pattern, enumeration, whiteSpace, and totalDigits.
